We launched GEALAN-windowfit in cooperation with the Meesenburg Group. This means that in this system portfolio, our innovative ideas flow together with those of an equally experienced industry expert. This results in holistic product solutions whose application offers numerous advantages and thus makes your everyday work easier.
The GEALAN-windowfit product range includes not only connection profiles, but also every type of required accessories. This gives you comprehensive solutions with perfectly coordinated components that have been tested as a complete system.
The profiles are characterized by proven airtightness at the connection to the frame backing. This effectively prevents condensation on the components and their connections. In addition, thanks to the excellent thermal insulation properties, the formation of thermal bridges is avoided.
Thanks to the integration of GEALAN-windowfit into the Planersoftware, planners and architects can insert the profiles directly into their digital construction plans. This enables comprehensive and precise planning of the elements.

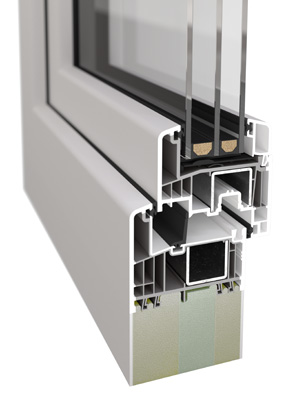

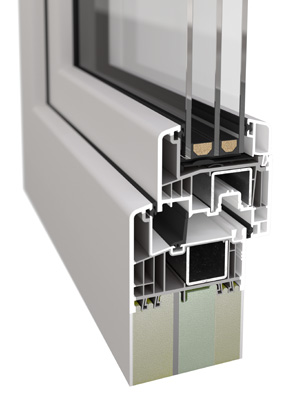

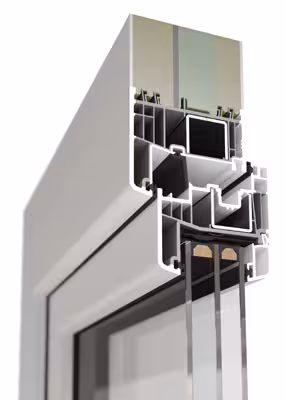

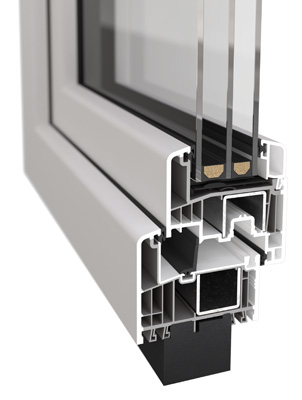

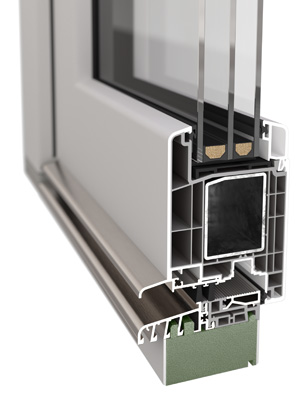

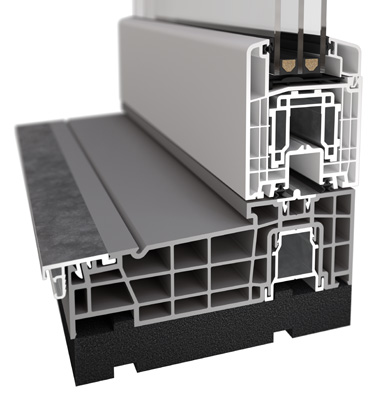

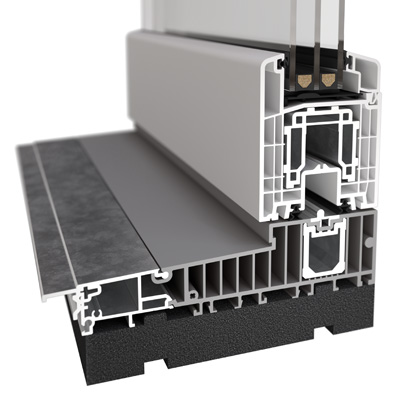

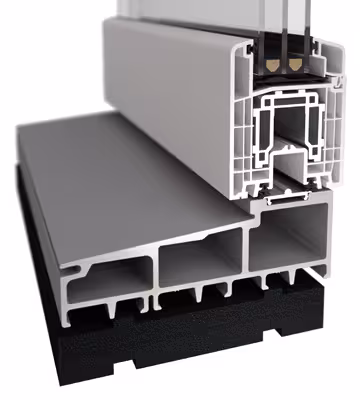

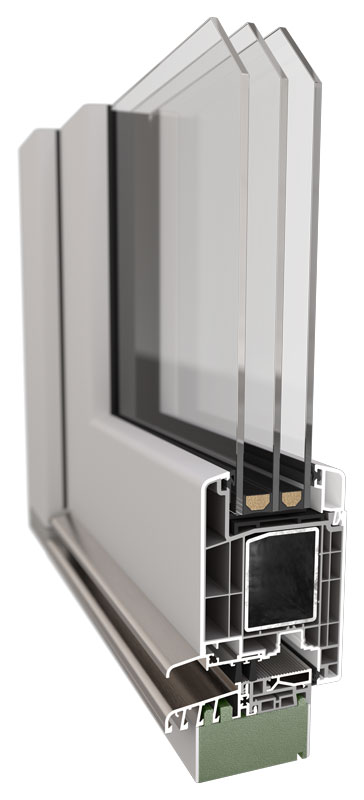

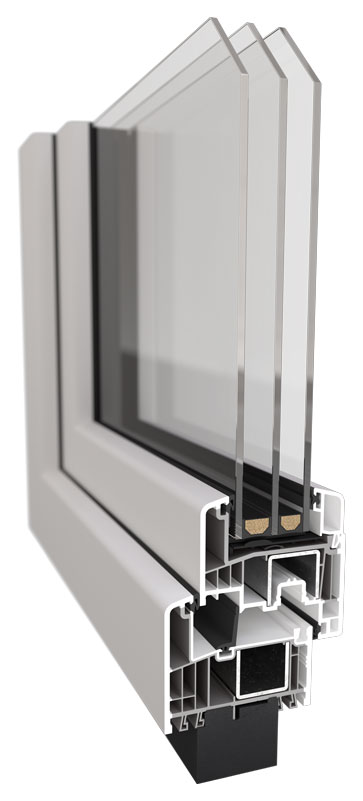

All plinth insulation profiles for floor-to-ceiling elements, lift-and-slide doors and bank connection profiles can be extended endlessly. This means that there is hardly any waste. The airtight connections provide additional safety and efficiency during installation. The use of steel bracing in the connection profiles and the associated effort is eliminated.
The comprehensive range offers solutions for GEALAN system depths of 74 mm and 82.5 mm. All profiles are available in different heights, which allows for targeted adaptation to the requirements of the construction project and eliminates the need to duplicate several profiles.

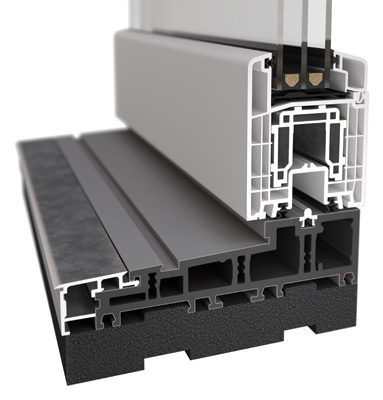

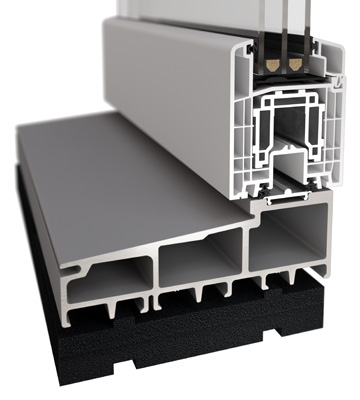

Thanks to the high compressive load capacity of the materials, the profiles are also suitable for heavy elements such as lift-and-slide doors. Specially designed profile cross-sections ensure optimal load transfer, which increases the stability and safety of your windows.
| Surface and top layer | 2mm PVC White on both sides |
| Material | Thermoplastic (TK) |
| Compressive load capability at 60x40mm (blaugelb assembly block) |
4,440 N |
|
Compressive load capacity at 170x53mm |
16,669 N |
| Compressive load capability at 210x53mm (blaugelb HST shim) |
20,628 N |
| Fire (DIN 4102-1:1998-05) |
B2 |
| Fire (DIN EN 13501-1:2019-05) |
Class E |
| Heat transfer coefficient U-value (55mm / 60mm / 66mm / 74mm) |
0.696 / 0.641 / 0.586 / 0.526 W/m2K |
| Stability | very high, even in outdoor weathering |
| Screw Extension Values (blaugelb frame fixed screw FK-T30 7.5 x L mm, 60mm screw-in depth) |
X-axis: FRK 4.06 kN Y-axis: FRK 3.67 kN |
| UV resistance of PVC top layer (DIN EN 513: irradiance energy 12GJ/m2 or outdoor weathering over 5 years) |
Weather and light fastness, there are no color deviations of more than gray scale level 4 according to ISO 105-A03 |
| Waste key | AVV 070213 |
| Material | High-density EPS (expanded polystyrene) |
| Color | grey |
| Compressive load capacity at 210x53 mm (blaugelb HST shim) |
15,510 N |
| Fire: DIN 4102-1:1998-05 |
B2 |
| Fire: DIN EN 13501-1:2019-05 |
Class E |
| Thermal conductivity nominal value ƛ10: DIN EN 12667:2001-05 |
0.0403 W/m*K |
| Water vapour diffusion resistance: DIN EN ISO 12086 |
228 µ |
| Air permeability: EN 12207 | Grade 4 |
| Bending strength: DIN EN 12089 | ≥ 2,490 kPa |
| Compressive stress (2%) compression: DIN EN DIN EN 13163:2017 / EN 826:2013-05 |
≥ 1,435 kPa |
| Shear strength: DIN EN ISO 14130 | 0.217 N/mm2 |
| Dimensional stability: DIN ISO 75-1 | short-term up to +95°C in the long term up to +85°C |
| Dimensional stability: DIN EN 13163:2015-04 | very high, even in outdoor weathering |
| Screw pull-out values: blue-yellow Fixed Frame Bolt FK-T30 7.5 x 42 mm sfs Window sill screw 4.5 x 35 mm |
FRK AZ 1.200 N FRK AZ 510 N |
| Compatibility with common building materials | except solvents, solvent-based substances and substances that are not compatible with polysytrol |
| Durability | Rot-resistant, rot-resistant |
| Waste key | Key No. 170604 Key No. 170904 |
