GEALAN-KUBUS®

Simply beautiful windows

The GEALAN-KUBUS® system defines a new design language for PVC windows in architecture. More light and transparency from the large glass surfaces open up new design possibilities. On the inside, the new system convinces with a flush view without disturbing joints, while on the outside, the right-angled overlap underscores the harmonious overall impression.

GEALAN-KUBUS®

Our architect window presented on video

The design-oriented GEALAN-KUBUS® window system opens up maximum design possibilities for architects and thus new perspectives. Whether with a 100% visible, semi-concealed or almost invisible frame, the proportions are created that leave an impression.

Benefits of GEALAN-KUBUS®

New simplicity in design

The GEALAN-KUBUS® system defines a new design idiom for vinyl windows in architecture.

Square and almost invisible

The system dimension for both the frame/sash combination and the mullion is 100 mm.

100 mm – the measure of all things

Perfection is not attained when you have nothing more to add but rather when there is nothing left to take away

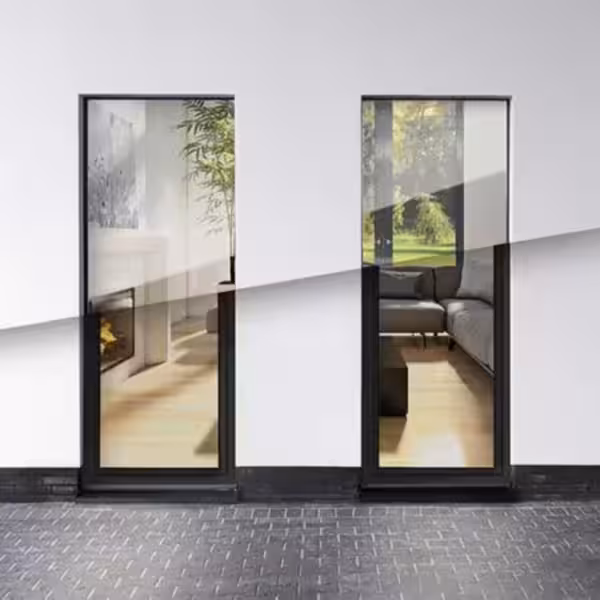

Less is more

New simplicity in design

The GEALAN-KUBUS^® system defines a new design idiom for vinyl windows in architecture. It offers large expanses of glass for more light and transparency, and greater design freedom. On the inside, the new system boasts a flush sightline with no distracting joins. On the outside, its rectangular upstand emphasises the harmonious overall impression.

Square and almost invisible

The system dimension for both the frame/sash combination and the mullion is 100 mm. This means that the mullion and lateral frame parts have the same visible width, resulting in symmetry and an aesthetic appeal.

100 mm – the measure of all things

"Perfection is not attained when you have nothing more to add but rather when there is nothing left to take away."
Antoine de Saint-Exupéry

No glazing bead
Visible width of 100 mm for the frame/sash package and the mullion
Flush interior view
Clean contours

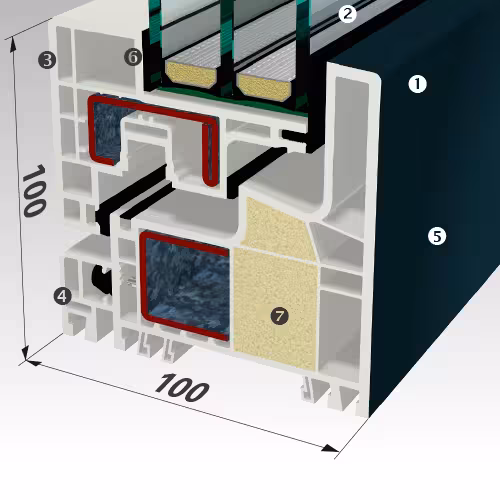

The kiss principle: keep it small and simple

The perfect window design

Reveal variants

The design-oriented GEALAN-KUBUS^® window system opens up a range of design possibilities and therefore new perspectives for architects. Whether fully exposed (1), half concealed (2) or almost invisible (3), GEALAN-KUBUS^® frames are guaranteed to make an impression.

Easy-to-clean frame geometry

The GEALAN-KUBUS^® system is also impressive from a functional point of view, above all with respect to the ease of cleaning. In the profile geometry, particular attention was paid to smooth contours in the frame. The frame stop has no gasket, while a curved central domed gasket is integrated into the frame.

Colouring in the GEALAN-KUBUS® system

GEALAN offers a wide range of options for bringing colour to PVC windows. One of them is the proven surface technology GEALAN-acrylcolor®. The coloured acrylic layer is scratch-resistant, weather resistant and easy-care. That means that window systems with GEALAN-acrylcolor® meet the highest technical and functional demands for innovative, coloured surfaces.

The GEALAN-acrylcolor® colour palette

RAL 7015: Slate grey

RAL 7016: Anthracite

RAL 7022: Umbra grey

RAL 7040: Window Grey

RAL 8014: Sepia Brown

Silver similar to RAL 9007*

RAL 9005: Deep black

RAL 7039: Quartz Grey

DB703*

GEALAN-acrylcolor® standard colours GEALAN-KUBUS®

Opening schemes

Compatible with...

S 9000 lift-slide door, S 9000 system design and front door

GEALAN-KUBUS® can be combined with the S 9000 system and is suitable for window and French window solutions.

Downloads for GEALAN-KUBUS®

Brochure GEALAN-KUBUS®
